SPECIFICATIONS

Pattern Type: DIY knitting tools

Product Name: Knitting Machine

Feature 1: Easy to Knit

Feature 2: Fast Knitting

Suitable Age: over 8 years old

Create all kinds of items: glove, knitted hat, & scarf.



Specification:

Condition: 100% Brand New
Product Name: Knitting Machine
Material: plastic
Type: 22/40/48 Needles
Color: As the picture shown
Packing: choose the style you need

Noted：

Due to the long transportation distance, the outer packaging box of the product was damaged during transportation and no compensation will be made.

Thank you very much for your understanding!

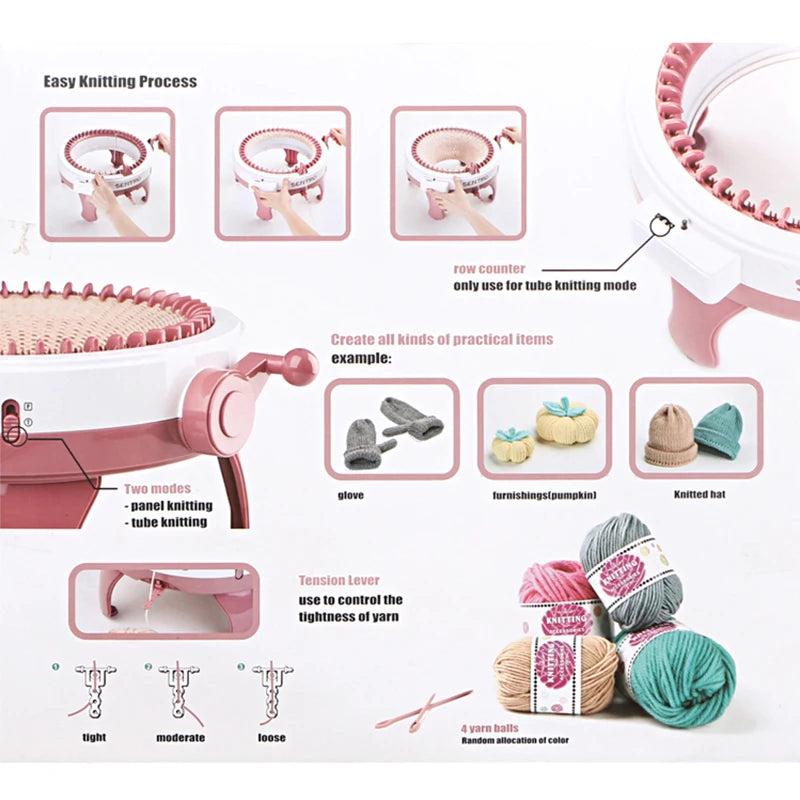

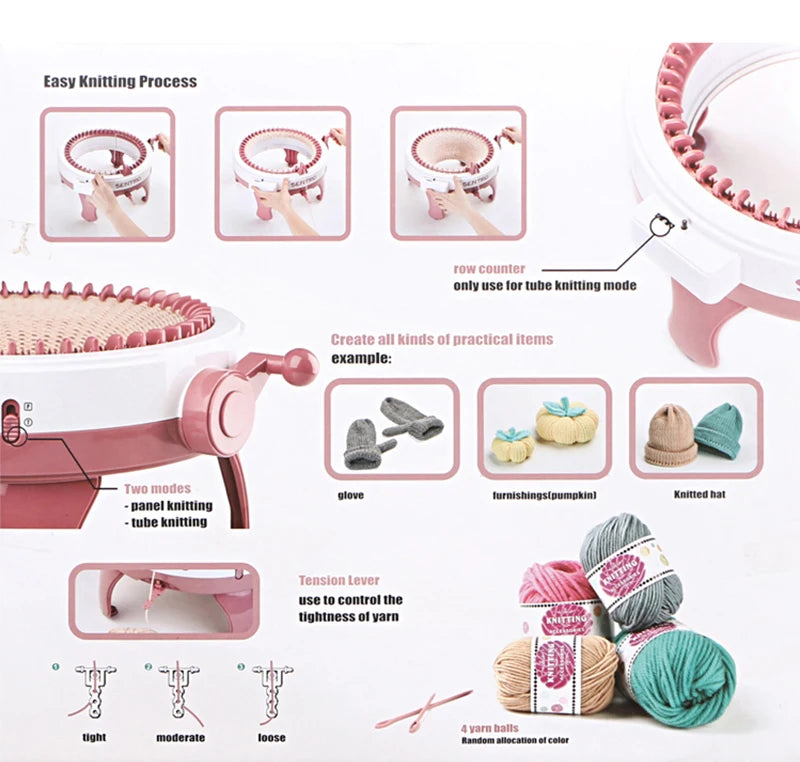

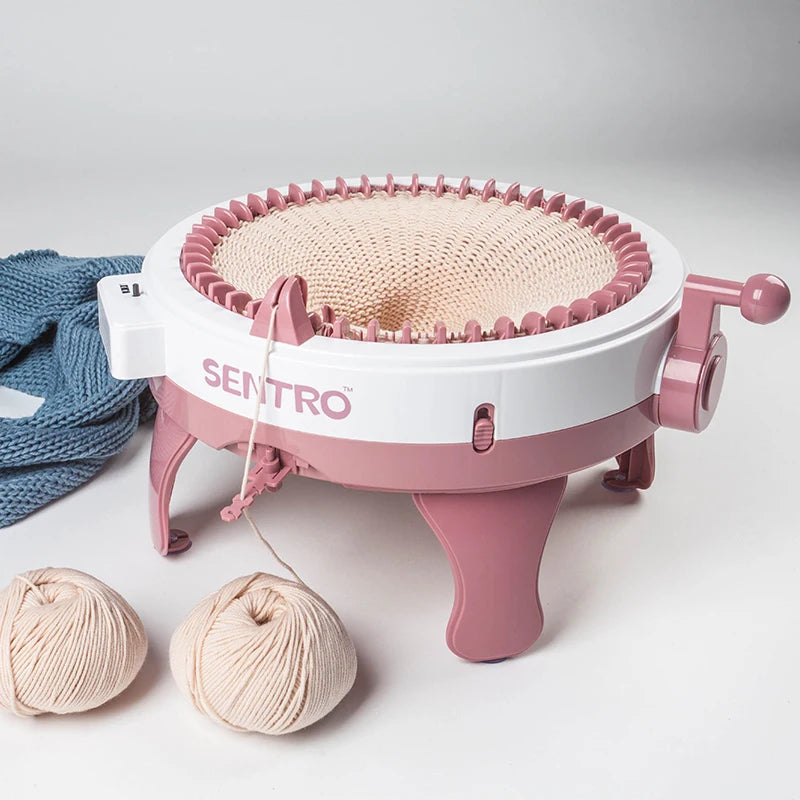

Knitting machine DIY finished product display



IDEAL DIY GIFTS FOR KIDS:

Perfect for beginner knitters like kids, knit fashion accessories like hats scarves socks and leg warmers, as a gift to Children, family and friends



FAST KNITTING MACHINE:

The weaving speed is ten times faster than the traditional hand knitting method. Hand-knit a hat for about 30 hours. A woven machine is used to woven a hat for about 15 minutes. Compact body, easy to carry and use, the weaving effect is good



48 needles with line counter to display the number of knitting lines



This manual knitting machine has a dual mode to meet a variety of needs.

T loop knit, after the first turn to a tooth leak, start a clockwise rotation to woven a cylindrical fabric, can be used as a hat after finishing.

P flat knit, you can adjust the width of the fabric according to your needs, and use the needle and crochet to freely splicing into a scarf, etc



Teaching of the first loop of the knitting machine

The first loop stitch operation: 1 needs to pass through the inside of the white crochet hook first, the second stitch passes through the back of the crochet hook, and the third stitch passes through the inside of the crochet hook. (one stitch on the inside) (one stitch on the back) cycle operation one Lap, the first lap is completed

The second lap does not need (one stitch on the inner side) (one stitch on the back), just roll normally.

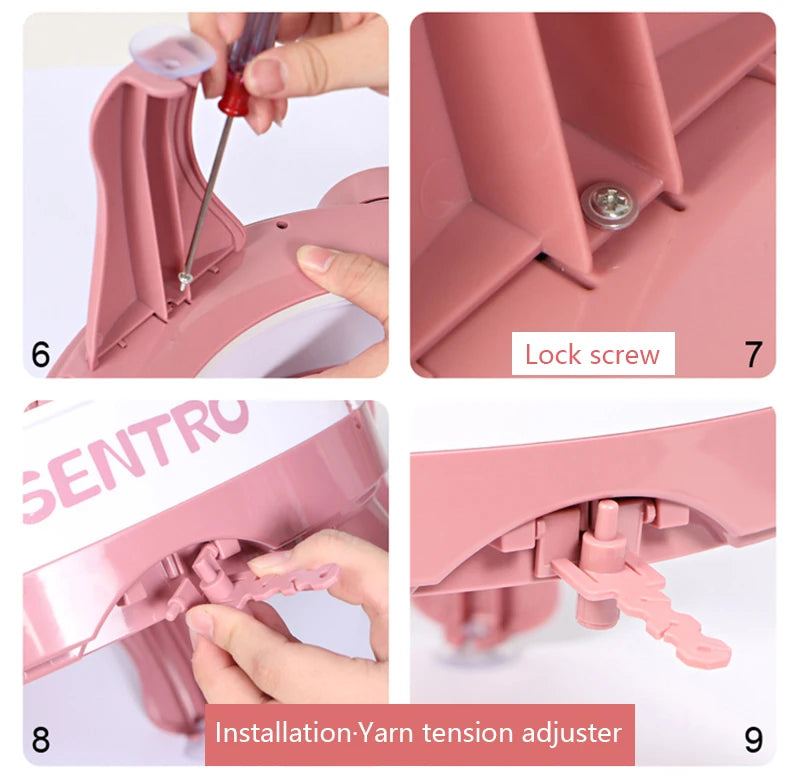

Steps to install the base: with anti-skid pad

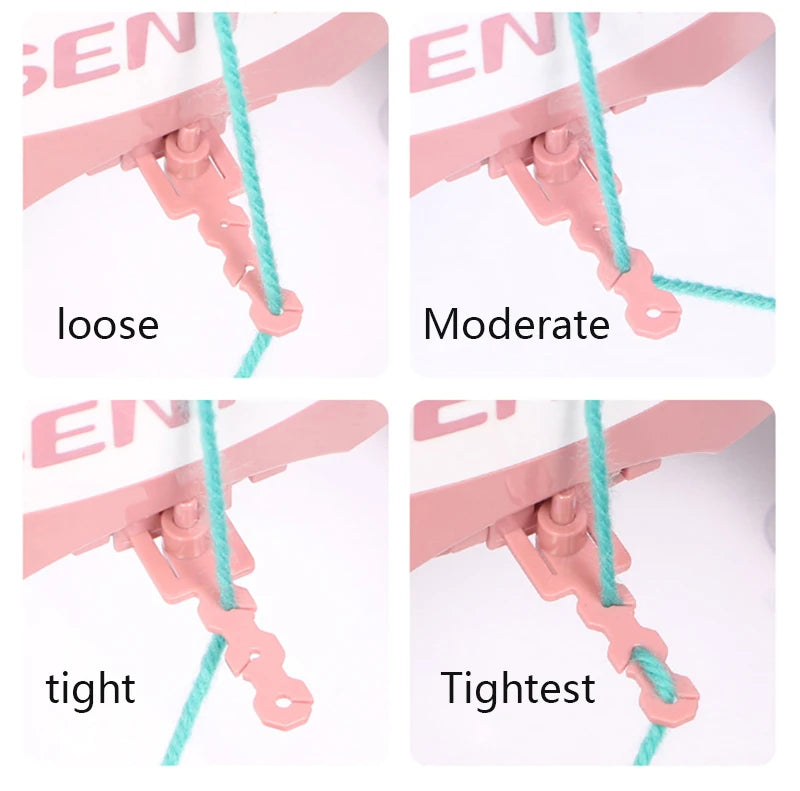

Looseness of braided yarn

You will need to adjust the position of the thread hole that goes through the thread tensioner according to the thickness of the yarn you are using. Thick yarn is recommended to go through the loosest thread hole on the outside.

Tightness: Tight / Tightness: Moderate / Tightness: Loose / Tightness: Tightest (for very fine soft wool)

The knitting toy is made of high quality plastic material, durable and long service life. Good for children developing creativity, DIY ability, elaborative faculty. Recommended for ages 6 and up.

Tutorial manual

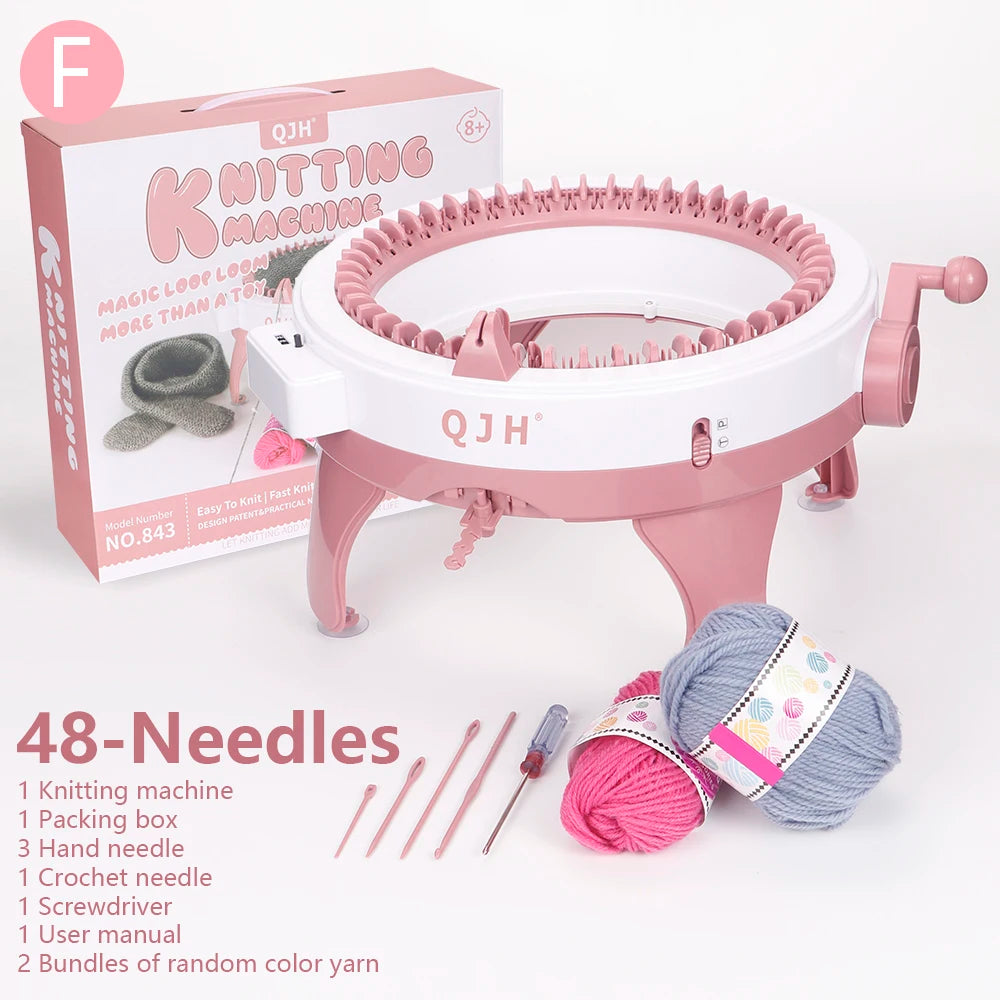

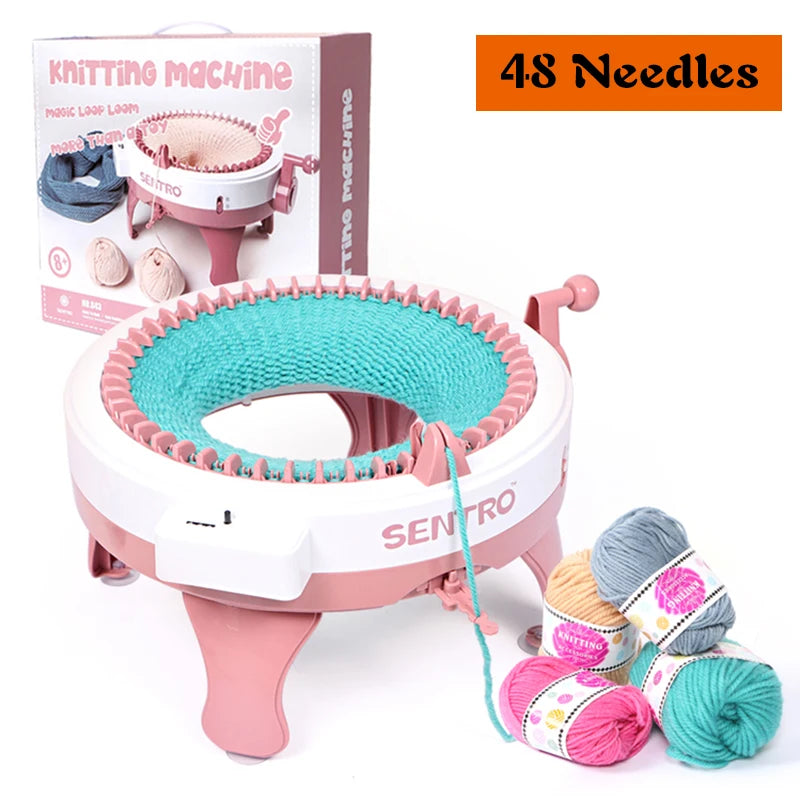

48 Needles-Knitting Machine Package included as below：

1 x 48 Needles Knitting Machine
2 x Plastic Sewing Needle
1 x Crochet Hook
2 x Large rolls of yarns (Random colors delivery) Need to choose belt yarn
2 x Small rolls of yarns (Random colors delivery) Need to choose belt yarn
1 x Screwdriver
1 x English Instruction Manual

48 needle knitting machine is suitable

1. Knitted gloves, socks, scarves, dolls, bags, pumpkins, flowers,
Sweaters, pillows, etc. (adult hats can be knitted)

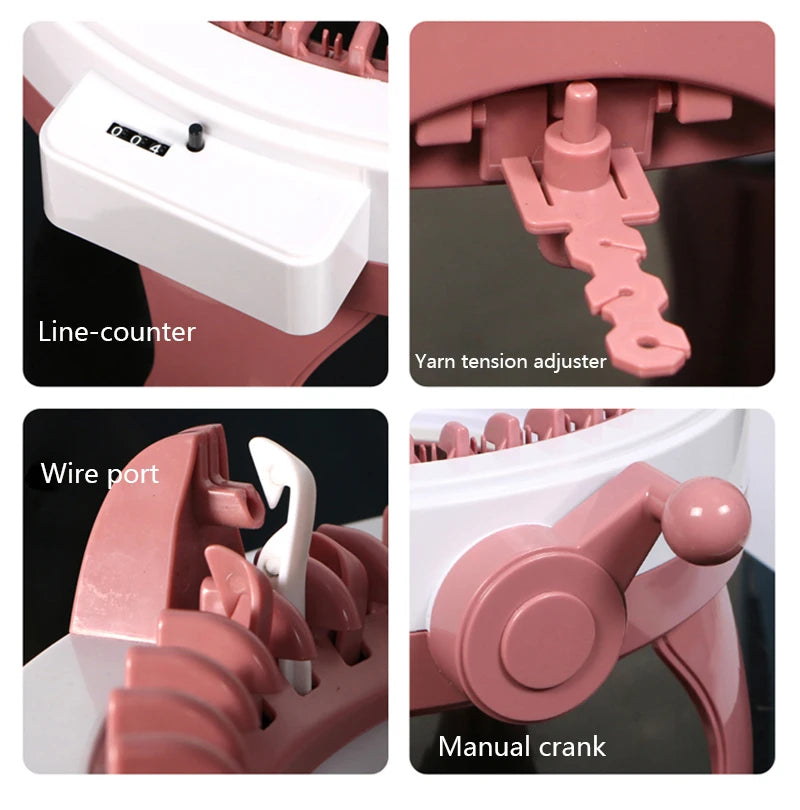

2. With a line counter to display the number of knitting lines
3.4 8 needles with line counter to display the number of knitting lines

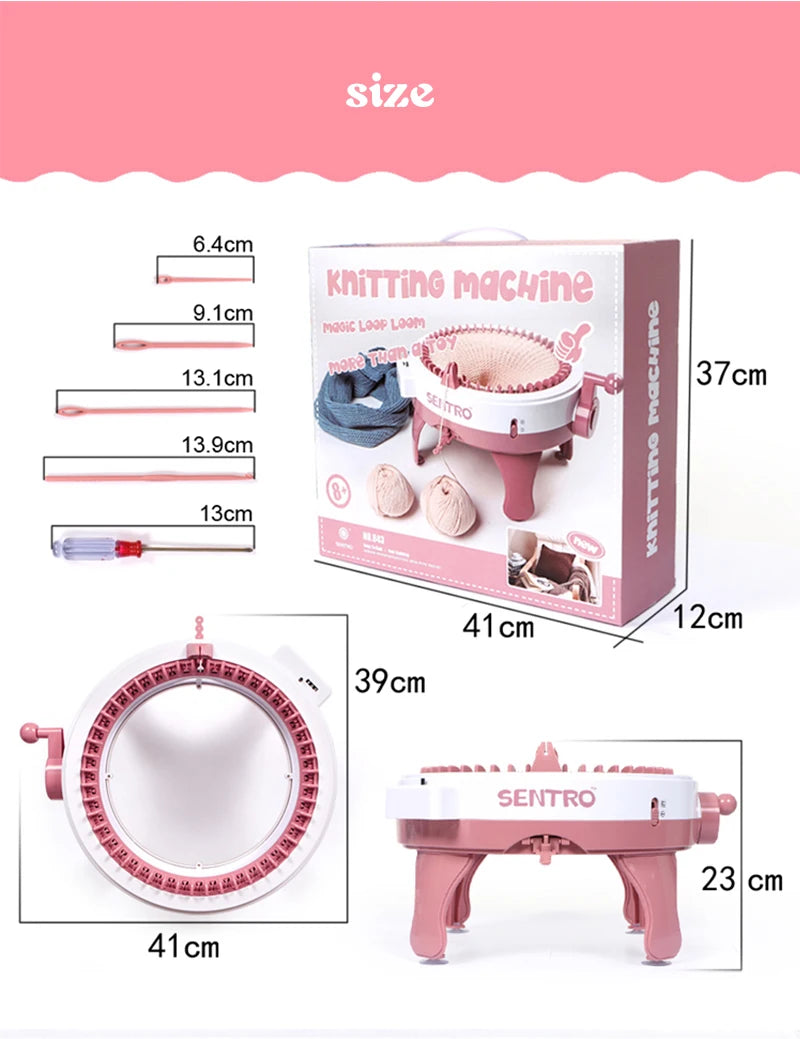

48 needle knitting machine (inner diameter is about ≈26cm/10.24inch)

Note:(48-needle knitting machine suit selection) unit with yarns-suit without yarn

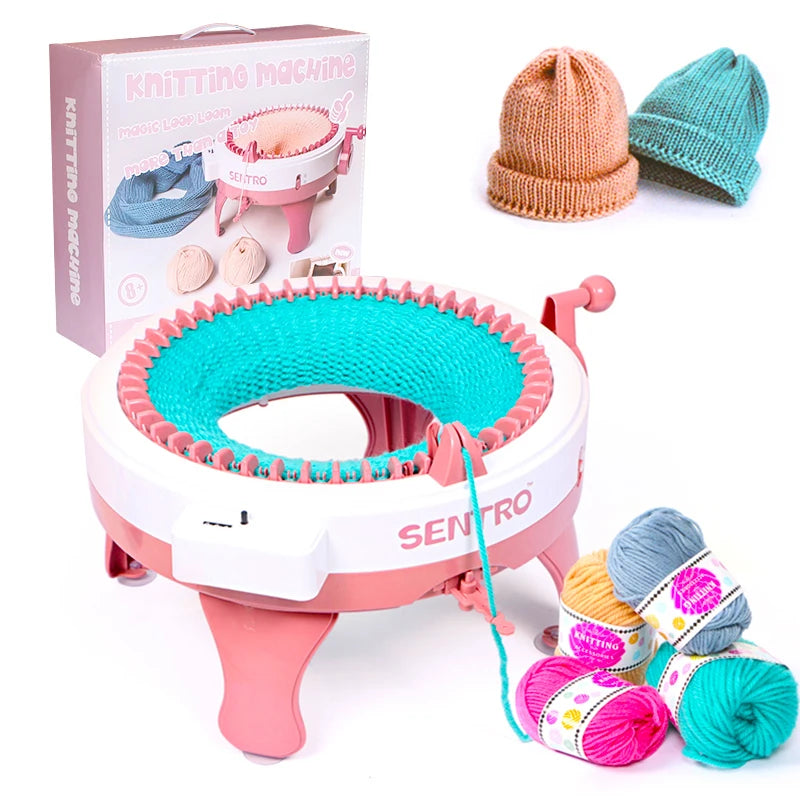

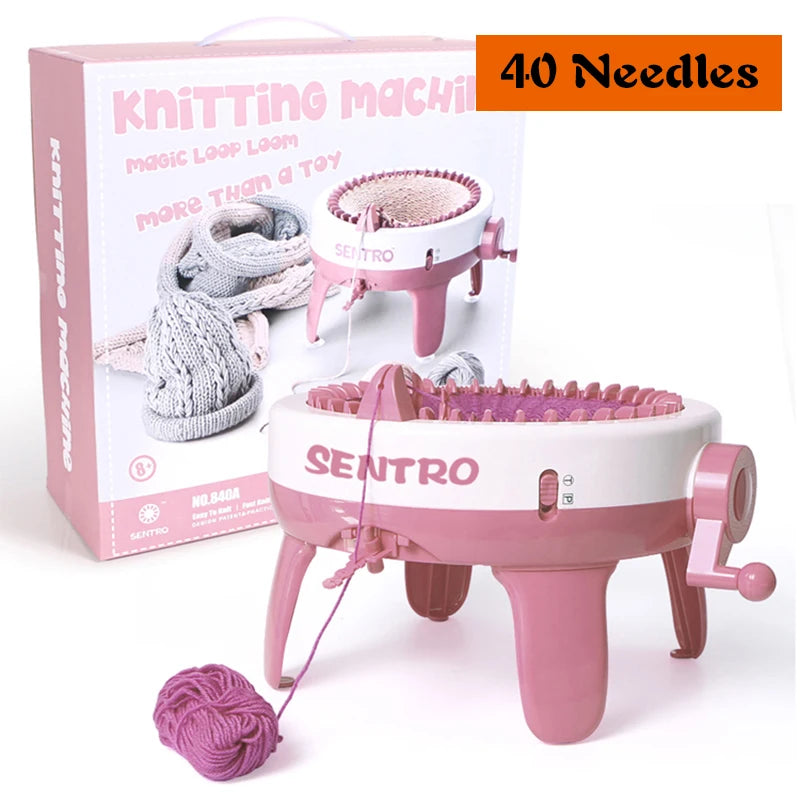

40 Needles - Knitting Machine +Packing Box, Package included as below：

1 x 40 Needles Knitting Machine
3 x Plastic Sewing Needle
1 x Crochet Hook
1 x Screwdriver
1 x English Instruction Manual
1 x Packing Box

40-needle knitting machine is suitable

1. Knitted gloves, socks, scarves, dolls, small bags, pumpkins, flowers,
Sweaters, pillows, etc. (children's hats can be knitted)

40 needle knitting machine (inner diameter is about ≈22cm/8.66inch)

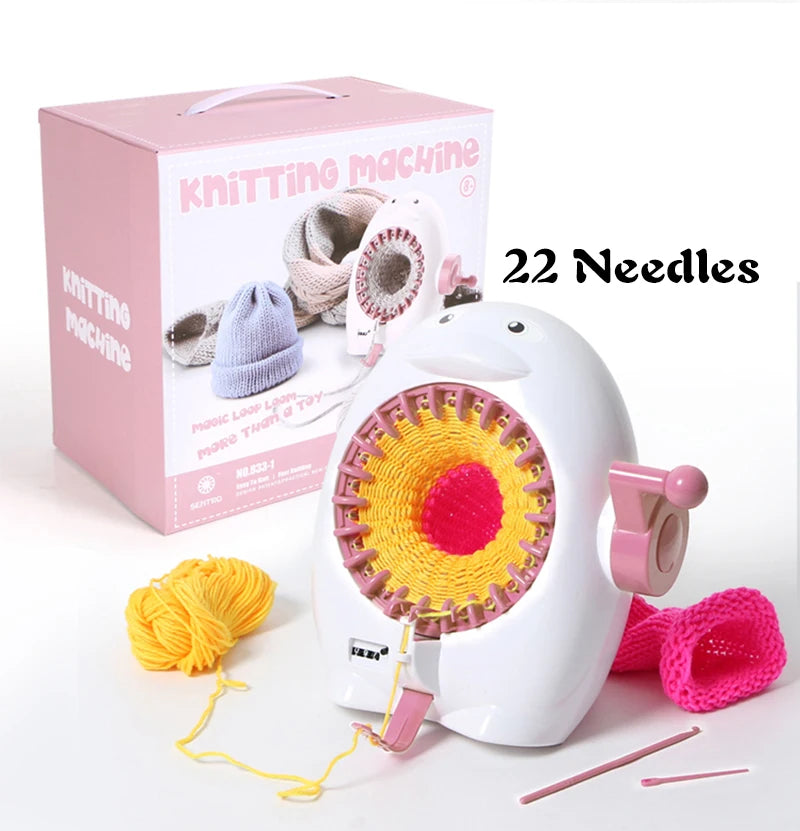

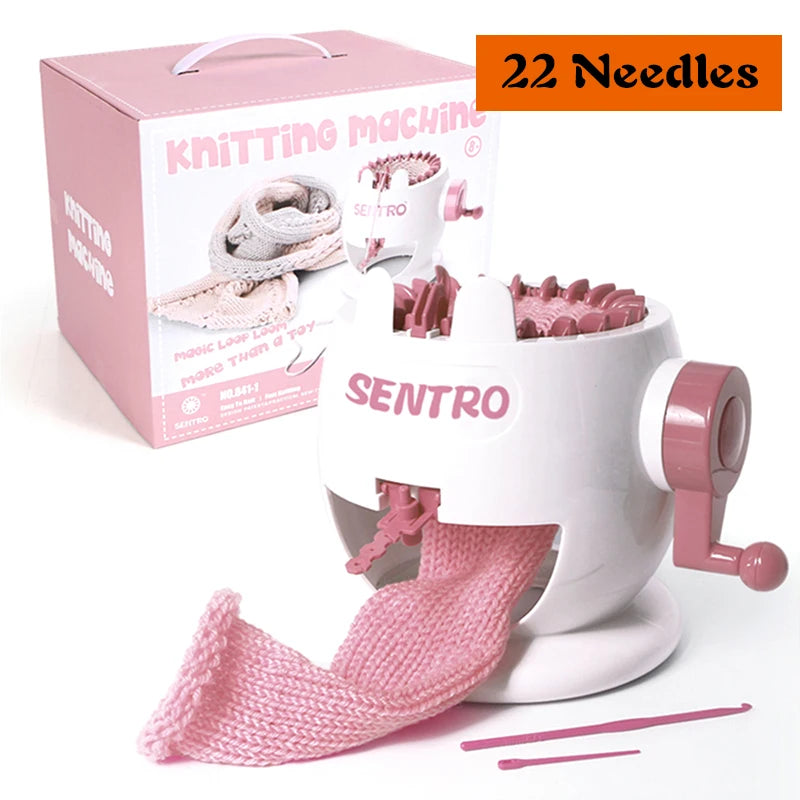

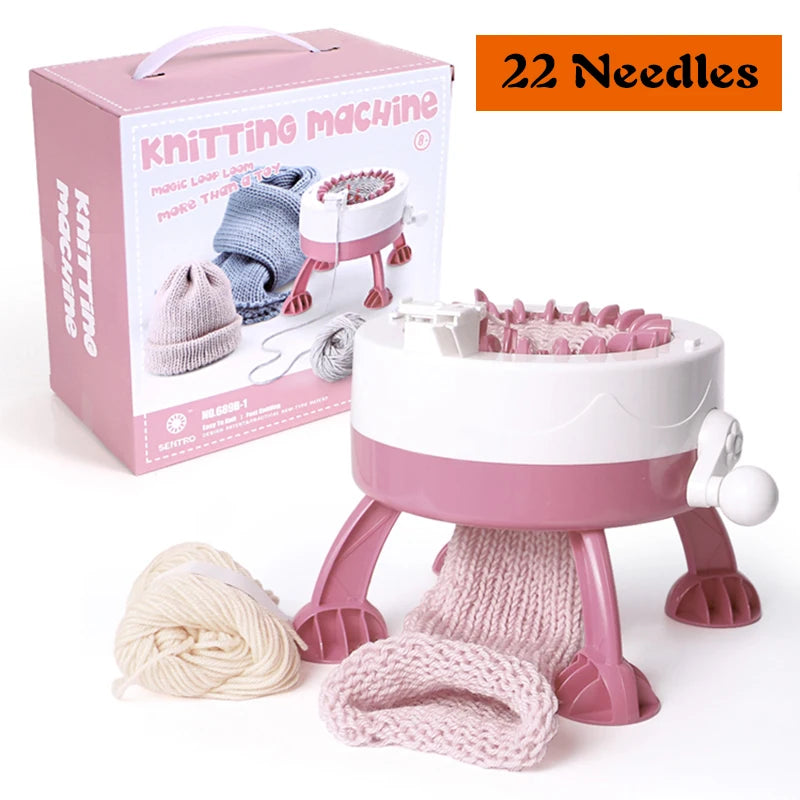

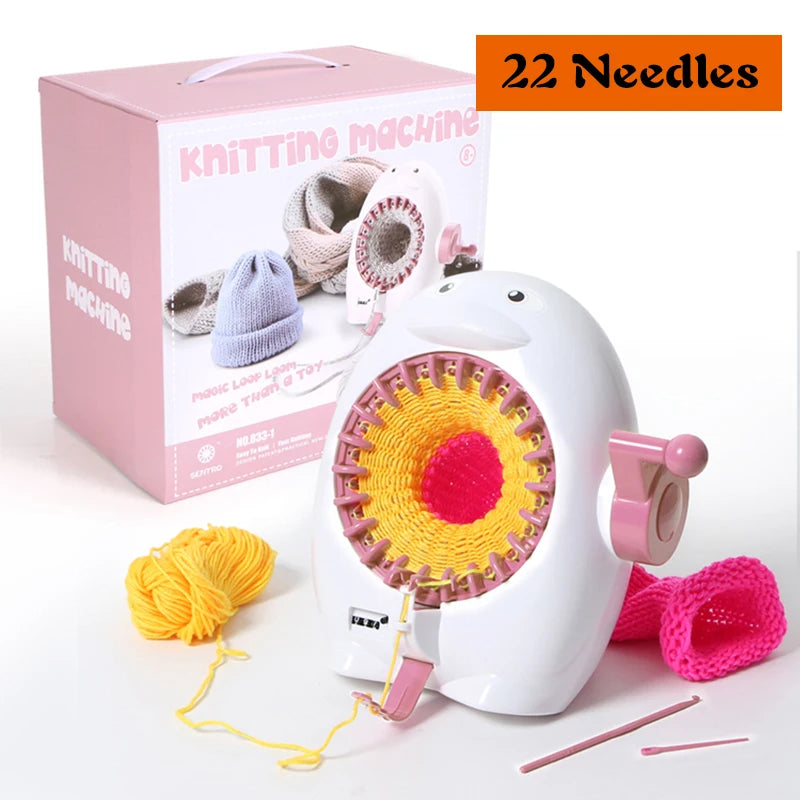

22 Needles - Package included:

1 x 22 Needles Knitting Machine
2 x bundles of yarns (Random colors delivery)
1 x English Instruction Manual
1 x Crochet
1 x Short Needle
1 x Packing Box

22 needle knitting machine is suitable:

1. Knitted gloves, socks, scarves, dolls, bags, pumpkins, flowers, etc.
2. Note: This style is not suitable for weaving hats

22 needle knitting machine (inner diameter is about ≈10cm/3.94inch)



22 Needles - Package included:(inner diameter is about ≈10cm)

1 x 22 Needles Knitting Machine
1 x Plastic Sewing Needle
1 x Crochet Hook
2 x bundles of yarns (Random colors delivery)
1 x English Instruction Manual
1 x Packing Box

22 Needles - Package included:(inner diameter is about ≈10cm)

1 x 22 Needles Knitting Machine with Row Counter
1 x Plastic Sewing Needle
1 x Crochet Hook
2 x bundles of yarns (Random colors delivery)
1 x English Instruction Manual
1 x Packing Box

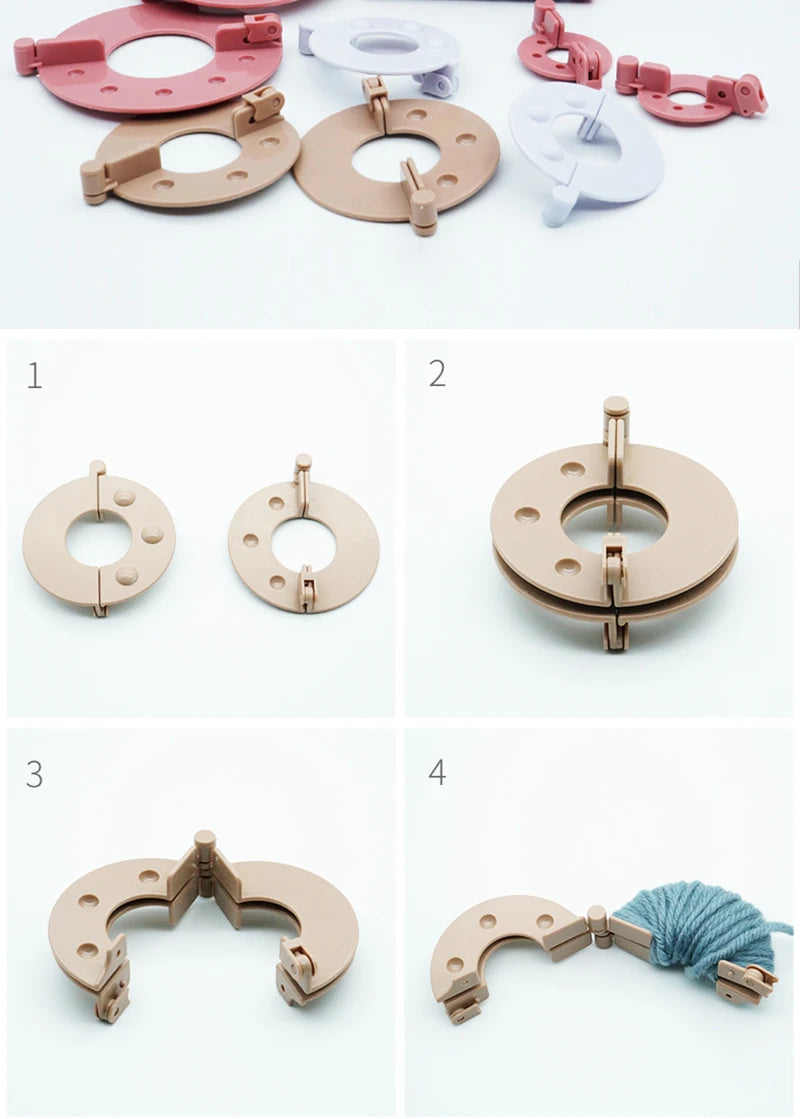

Hairball making

Click on the picture to buy

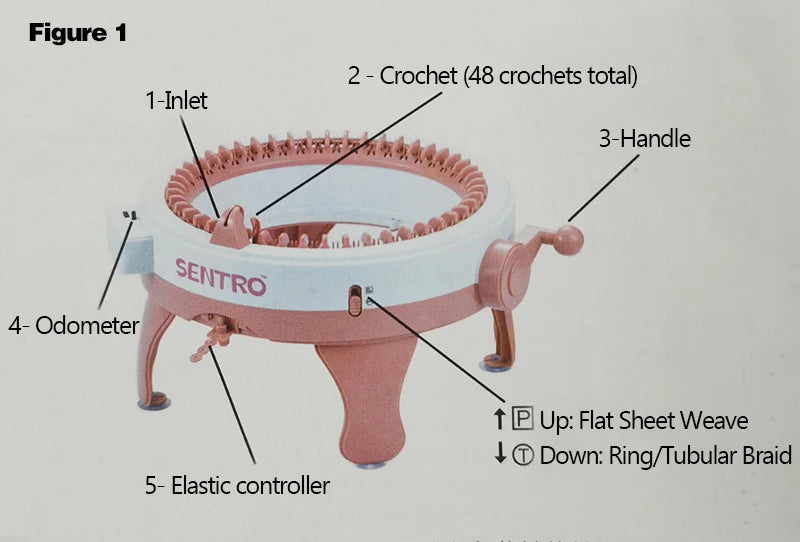

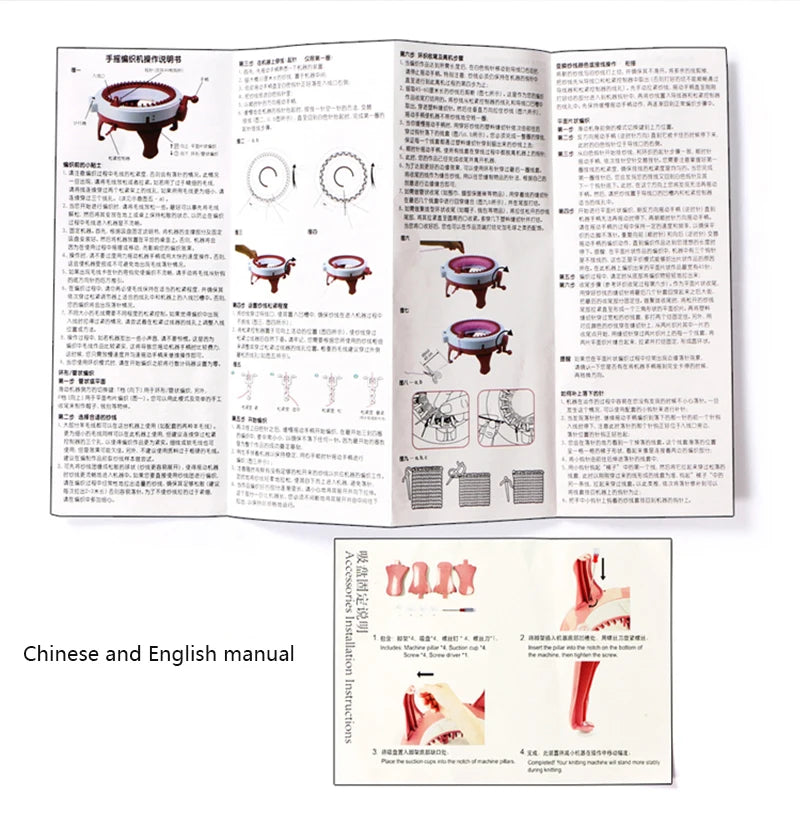

Hand Knitting Machine Operation Manual

Figure 1

1-Inlet

2 - Crochet (48 crochets total)

3-Handle

4- Odometer

6-↑Up: Flat Sheet Weave

↓ Down: Ring/Tubular Braid

5- Elastic controller



Small paste before weaving:

1. Please pay attention to the tightness of the wool during the knitting process, otherwise there will be needle drop. this situation

Once there, loosen or tighten the yarn. If you use too fine wool,

Pass the thread continuously through the thread holes on the two tensioners, if you are using finer

Pass through three wire holes in a row. (See schematic diagram IV-a for details).

2. When you start knitting, relax the yarn a bit. It is best to pre-

Loosen and lay it loose on the floor or table to prevent knitting

During the process, the yarn entering the machine is not smooth.

3. Fix the machine. First, according to the suction cup fixing instructions, fix the support part of the machine and fix it

The suction cup is installed. Then place the machine on a flat tabletop. Otherwise, the machine will

Affect your knitting effect by swaying or moving during use.

4. When operating, please do not shake the machine handle with excessive force or operate at too fast speed. Otherwise, the machine will be damaged or the yarn will inevitably drop out.

5. If the yarn is stuck at the hook of the needle and the knitting is not smooth, please manually remove the yarn from the hook

The bottom direction of the needle is pushed backward.

6. During the knitting process, please be sure to keep the wool at an appropriate degree of tightness and ensure that it is

Pass it through the appropriate thread hole on the slack adjuster and then into the thread entry groove on the machine. otherwise,

Your knitting will have needle drop.

7. Different sizes of wool require different degrees of tightness control. If you feel that knitting appears

If the thread is pulled too tightly, please try to adjust the thread entry on the thread hole of the tensioner

location or method.

8. During the operation, if the machine makes some small noises, please do not panic. This is because

The yarn work is tighter in the knitting, which will cause more effort when you shake the handle of the machine,

At this point, all you need to do is slow down and shake the handle evenly to continue.

9. When you use loop knitting mode, please set the row counter to zero before starting to knit.

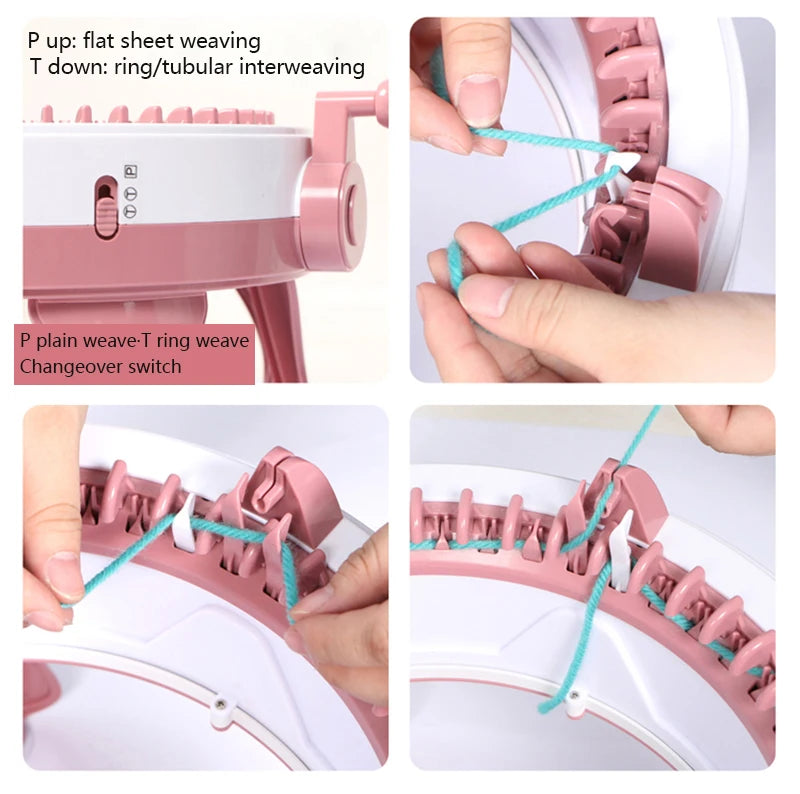

Ring/tubular braid:

Step 1: Tubular or Flat

Sliding switch on the side of the machine: T (down) for loop/tubular braiding, additionally,

P file (up) is used for flat fabric knitting (Fig.-). You can use this mode and simple manual

Finish off to make hats, wallets, and more.

Step 2: Choose the Right Yarn

1. Most wool threads can be used on this machine (such as the matching two wool threads).

Thinner yarns can also be used on this machine, but continuous threading is recommended

Three holes for the controller to make the weave work tighter. Thin or soft wool is also available

used, but the effect may not be good. In addition, it is not recommended to use wool that is too thick and hard.

It is recommended to take a sample of yarn to try before compiling a piece.

2. The yarn can be wound into a loose ball first (the yarn is easier to unfold), so that the machine can be shaken

When the yarn enters more smoothly, into the machine. If you are knitting directly from the yarn bales,

Please regularly pull out the right amount of yarn during the knitting process to make sure it is loose enough (recommended

Pull out 2-3 meters each time) otherwise it is easy to drop the needle. In order not to stretch the yarn too tight,

Please be more careful in knitting.



Step 3: Thread on the Machine

[Scan the code to watch the video: How to start knitting?

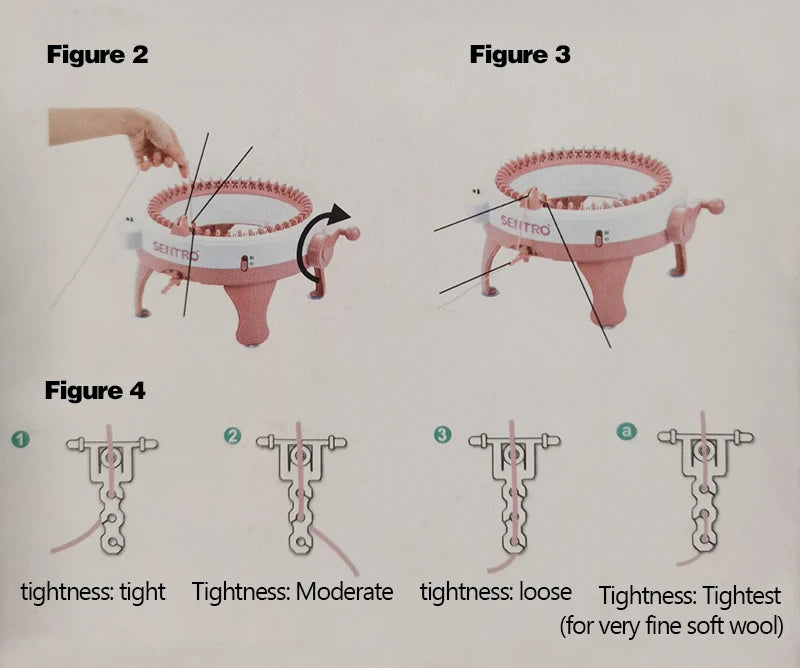

Step 4: Set the Yarn Tightness

1. Pass the yarn through the wire port and put it into the groove to ensure that the yarn is in the process of entering the machine

not off-line (as shown in Figure 2 and Figure 3);

2. Place the tension controller in a position that can move upward (as shown in Figure 3), so that the yarn passes through

After tightening the thread guide, it will sag naturally. Keep in mind that you will need to

to adjust the position of the thread hole through the thread tensioner. Thick and heavy wool is recommended to pass through the outside

The loosest wire hole (as shown in Figure 4).



tightness: tight/Tightness: Moderate/tightness: loose/Tightness: Tightest(for very fine soft wool)



Step 5: Start Weaving

1. After hanging the white needle again, slowly shake the handle to start knitting. In the first three to four states

In the knitting, be very small to ensure that no stitches fall. Because of the initial circle effect

is to lay the foundation for the success of the entire work;

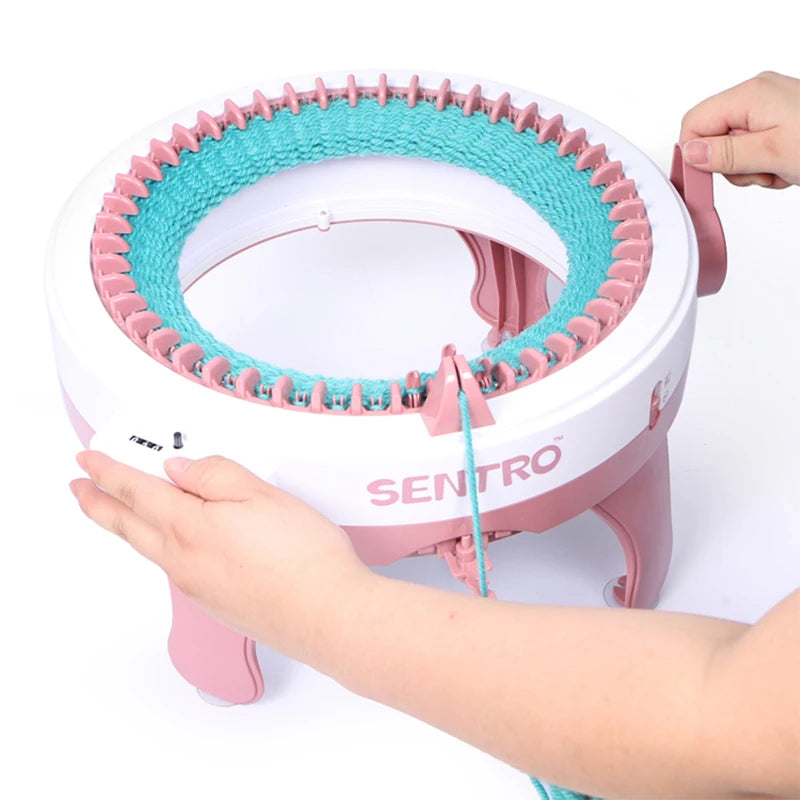

2. Hold the machine with your left hand to keep it stable, and use your right hand to shake the handle clockwise.

Weaving (as shown in Figure 2);

3. Pay attention to observe whether there is enough loose yarn to supply the knitting work of the machine at any time.

Gently loosen the yarn periodically to enter the machine from the bottom up to avoid needle drop;

4. When the woven part of the work gradually becomes longer, please unfold it carefully and stretch it down.

Once this section is longer than the machine, you have to unroll it without interruption and go down the middle

Pull out to keep it running smoothly.

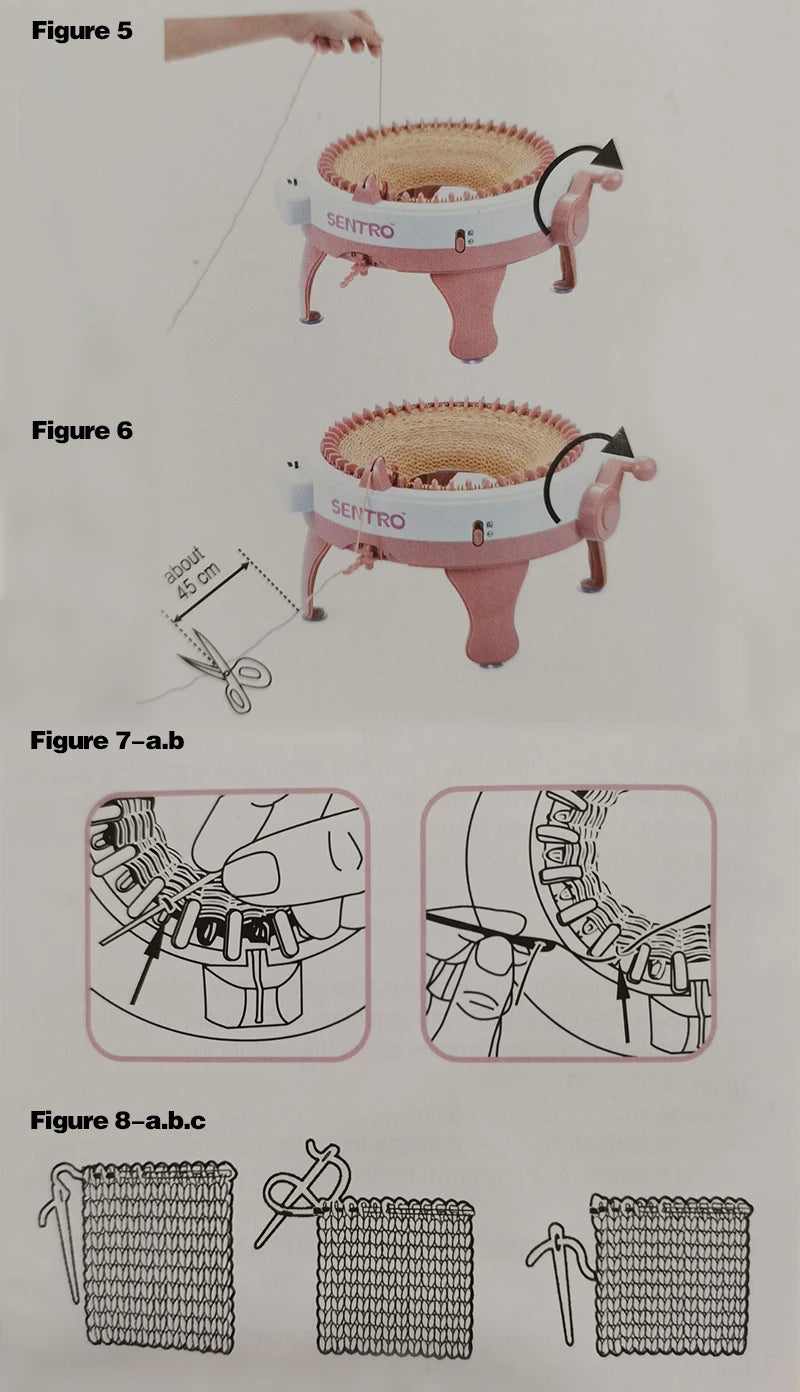

Step 6: Loop Weave Finishing and Off-Machine Steps

1. When the knitted work reaches the desired length, when the white crochet needle moves to the right of the wire opening,

Please stop shaking the handle. Special Note: The yarn must still remain in the crochet hook of the machine

until the fourth step of this off-camera process;

2. Take 45-60 cm long yarn and cut it (as shown in Figure 6). This is as your weave

For the ending of the work. Pass the yarn through the thread hole and the groove of the thread opening in the slack controller

Take it out and thread it through a plastic sewing needle. Then pull the yarn vertically (as shown in Figure 5),

Shake the handle to idle the machine one revolution without yarn:

3. While you are shaking the handle slowly, use the plastic sewing needle with the yarn threaded in order from front to back

Pass through the thread sleeve that the crochet hook has dropped (as shown in Figure 7 a.b). You must complete a full circle of threading,

Make sure that each thread sleeve is threaded through the plastic sewing needle to the remaining yarn;

4. Shake the handle clockwise to make all the thread sleeves disengage from the crochet needles on the machine during the threading process;

5. At this point, your work has been finished and left the machine;

6. In order to achieve a better edge effect, you can use a loop needle to pass through the last loop of the wire sleeve.

Use the ending thread as the stitching yarn, use the stitches you used to sew items, according to your own

Creative edge stitching can be done;

7. For tubular finishing (such as scarves, leg warm socks, etc.), use a sewing needle with thread

Make back stitches in the last few sleeves (shown in Figure 8b), and tie a knot at the tail.

8. If you need to make a gathered loop finish (such as hats, wallets, etc.), pull the loose yarn

the tail, pulling it tight until the mouth of the cylinder is tight. Thread and knot the plastic sewing needle a few more times.

Once you have your mouth closed, you can also add accessories like hair balls to the knots at the top of the piece.



Change yarn color or wire operation-joint:

Knot the new yarn with the old yarn and make sure it doesn't slip. Cut off the excess thread,

Take the yarn out of the wire port and the tension controller first (otherwise the knot won't pass smoothly

thread guide and thread hole for slack controller). Tighten the yarn manually first, shake the handle until just

The knotted part goes into the machine crochet, and the yarn is placed into the thread guide and slack controller

in the wire hole. Keep rocking the handle slowly, and then gradually return to the normal knitting step.



Flat Sheet Weave:

Slide the mode switch button on the front of the fuselage to the upper position.

[See step 3 scan the code to watch the video: How to start knitting? ]

Reminder: If you often have edge needle drop phenomenon during the flat sheet knitting process,

Please confirm if you have shaken the handle of the machine until it stops completely,

Change the direction again.



How to make up a dropped needle:

1. During the operation of the machine, it is easy to accidentally drop the needle when you do not notice it. once

When this happens, you can use the matching small crochet hook to make up the needle;

2. When the needle is found to be dropped, continue to shake the handle to knit to the previous hook of the dropped needle.

Stop when the thread is inserted, and note that the hook where the needle is dropped is just next to the thread entry port.

The needle hook at the needle drop position is just raised;

3. You will see a dropped thread sleeve at the place where the needle is dropped. The position f where the sleeve slips off

In the shape of a ladder, it looks like a braided part connecting the two sides;

4. Extend the small crochet needle from front to back into the thread sleeve of the needle drop;

5. Use a small crochet hook to hook up the first thread in the "ladder" and pull it up through the loose

Thread sleeve, at this time, the thread sleeve formed by the thread just passed through shall prevail, and hook up the "ladder".

Another thread, pull up through the thread sleeve. And so on, in turn repair the needle drop until it can be

Hook the thread sleeve back to the crochet hook on the machine as far;

6. Hang the yarn sleeve hooked on the small crochet needle in the handle back to the crochet needle of the machine.

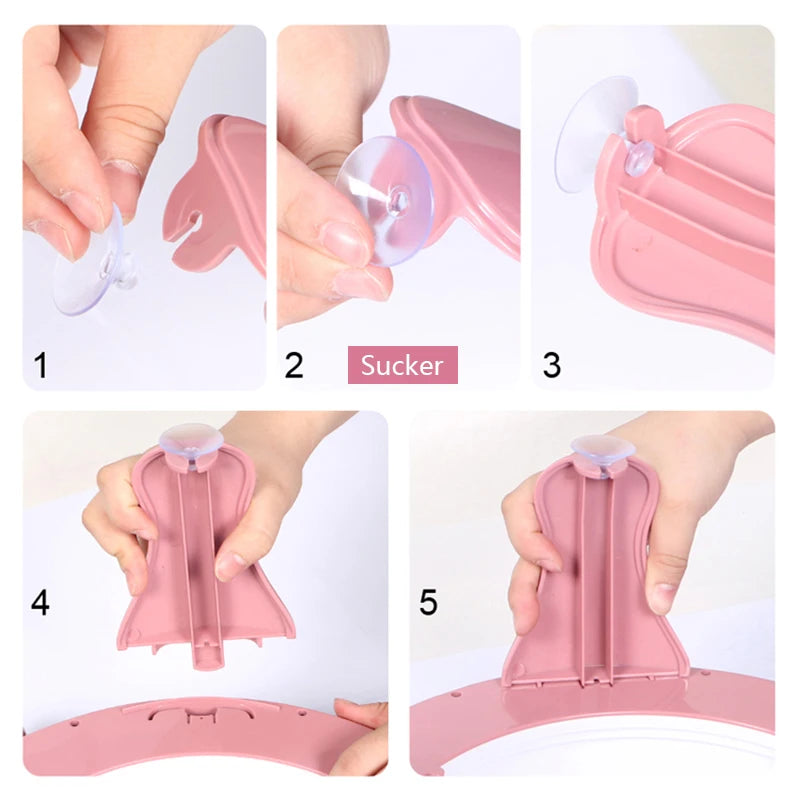

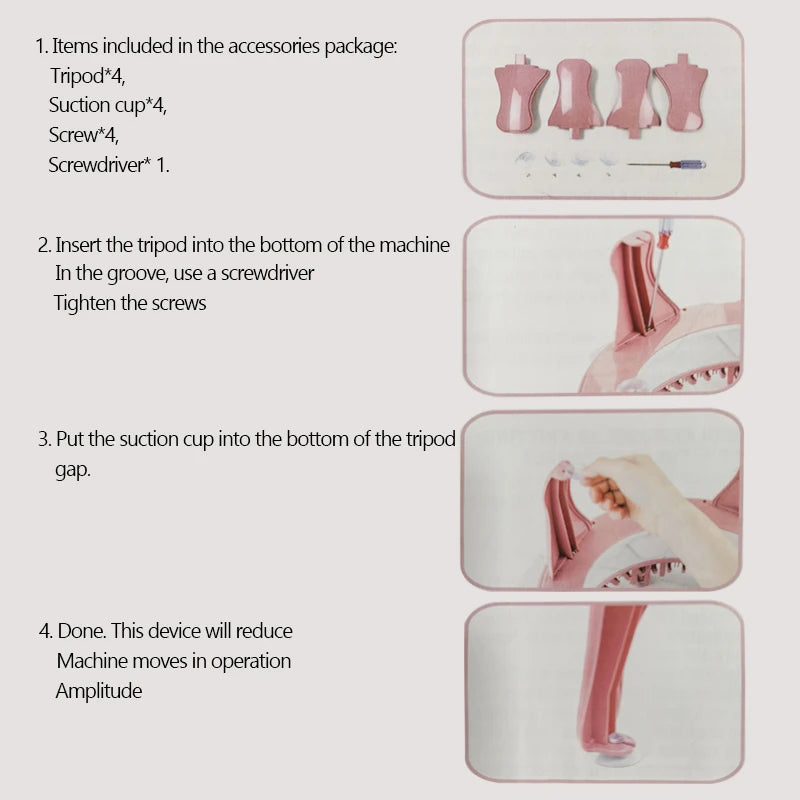

"48 needle knitting machine" suction cup fixing instructions

1. Items included in the accessories package:

Tripod*4,

Suction cup*4,

Screw*4,

Screwdriver* 1.

2. Insert the tripod into the groove at the bottom of the machine, and tighten the screw with a screwdriver.

3. Put the suction cup into the notch at the bottom of the tripod.

4. Done. This device will reduce the amount of machine movement during operation.



Noted：

1.The fabric is manually cut, the 1-2 cm error which is within the normal range.,thank you.
2.Our products are taken in kind. Due to the different resolutions of the display, there may be a certain color difference between the actual object and the picture. Please take the actual object as the standard.
